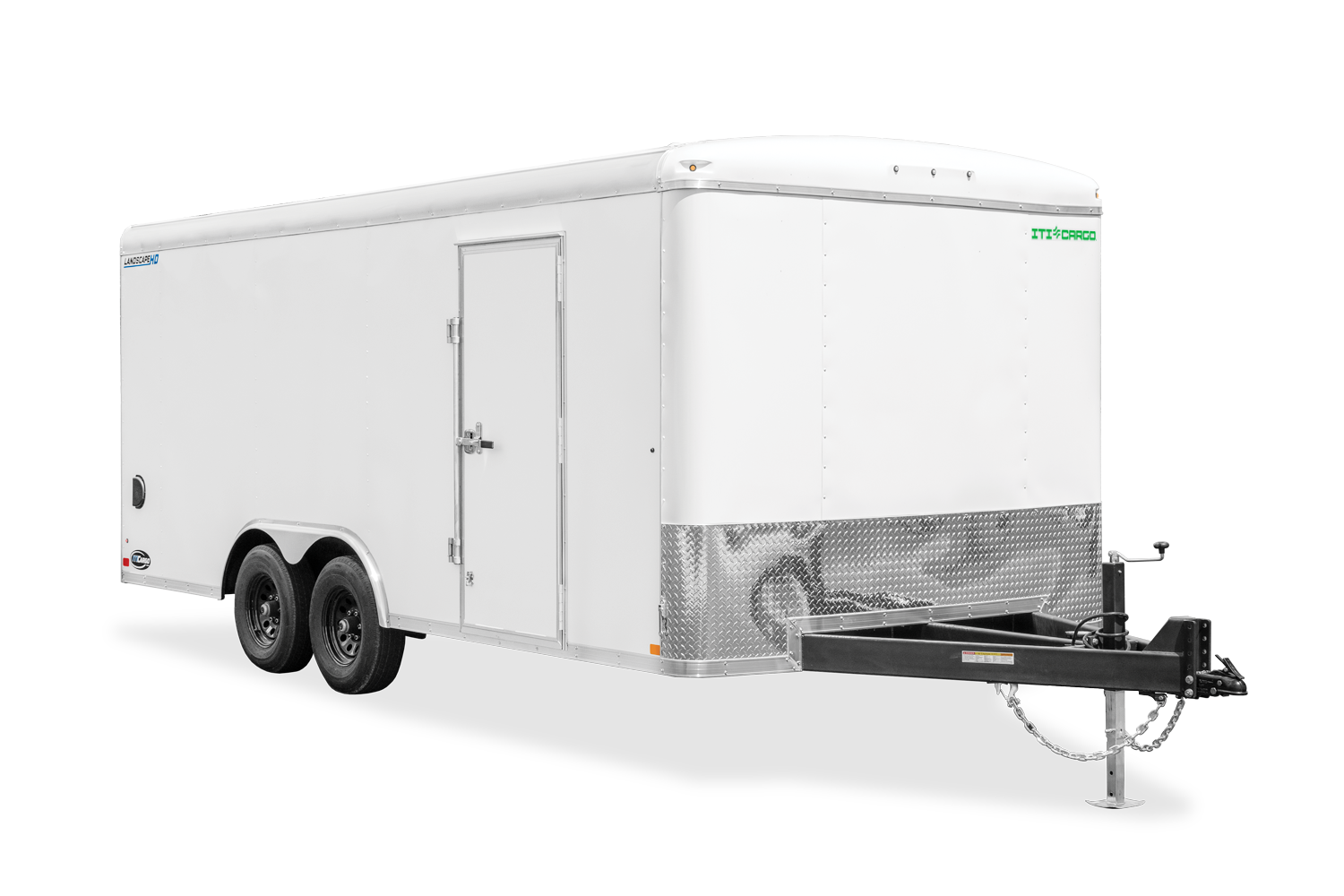

Built for the land artists, the earth shapers, and nature’s hair trimmers, the Landscape HD is setup to offer the best features that any landscaper could ever need. Interior plating, storage and hangers, bright lighting, and a sturdy build are what set this trailer apart from the rest. At ITI Cargo, we don’t believe in doing anything halfway, which is why we include all the features below at no extra cost. Start bringing your A-Game with the ITI Cargo Landscape HD. Find A Dealer Near You
Features
- 12" On-Center C-Channel Floor Crossmembers
- 16" On-Center Tube Gusseted Wall Studs
- 16" On-Center Tube Roof Bows
- 12" Extended Tongue
- 2-5/16" Adjustable Coupler
- Safety Chains
- 7-Way RV Style Molded Plug
- Breakaway Switch with Battery
- 7K Set-Back Jack
- 32" x 70" RV Side Door w/Barlock
- Aluminum Door Holders
- 5100 lb. Rated Rear Door w/ Integrated Transition Plate
- Barlocks on Ramp Door
- Aluminum Fenders
- Torsion Axles
- Brakes on Both Axles
- Black Wheels
- Bedliner Coated Tongue, Rear Hoop, and Fender Boxes
- Undercoated Lower Frame
- Polyethylene Vapor Barrier
- .030 Smooth Aluminum Exterior
- Semi-Screwless (Seams Screwed w/ Color Matching Screws)
- Seamless Aluminum Roof
- .080 Aluminum Roof Cove
- Aluminum Bottom Trim
- 24" ATP Stoneguard w/ Top Trim
- Flow-Through Scoop Vents w/ (2) Roof Vents
- 6'6" Interior Height
- 3/8" Engineered Wood Wall Liner w/ Aluminum H-Molding
- 3/4" Treated Plywood Flooring
- 12" Tall Reinforced Kick Plate
- (2) 12 Volt Wall mounted LED Dome Light w/ 1 Wall Switch
- (4) 6000lb. Rated D-Rings
- LED Slimline Lights and 3/4" Bullet Marker Lights (All Clear Lens)
- (1) Wood Shelf w/ 2" Lip
- (2) Gridiron Posts w/ (3) Trimmer Bracket Set
Available Options
- Ramp Options
- Electrical Options
- Contact your local dealer for more options
Specifications
- 7' Wide (7k)
- 7' Wide (10k)
- 8.5' Wide (7k)
- 8.5' Wide (10k)
- Model #
- 7' Wide (7k) 14' - Y8414LHD-TA-070
16' - Y8416LHD-TA-070 - 7' Wide (10k) 14' - Y8414LHD-TA-100
16' - Y8416LHD-TA-100 - 8.5' Wide (7k) 16' - Y10216LHD-TA-070
- 8.5' Wide (10k) 16' - Y10216LHD-TA-100
18' - Y10218LHD-TA-100
20' - Y10220LHD-TA-100
22' - Y10222LHD-TA-100
24' - Y10224LHD-TA-100
- GVWR (lb. / Axle)
- 7' Wide (7k) 7000
- 7' Wide (10k) 9900
- 8.5' Wide (7k) 7000
- 8.5' Wide (10k) 9900
- GAWR (lb. / Axle)
- 7' Wide (7k) 3500
- 7' Wide (10k) 5200
- 8.5' Wide (7k) 3500
- 8.5' Wide (10k) 5200
- Curb Weight
- 7' Wide (7k)
- 7' Wide (10k)
- 8.5' Wide (7k) 16' - 3120
- 8.5' Wide (10k) 16' - 3755
18' - 3980
20' - 4205
22' - 4430
24' - 4655
Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
