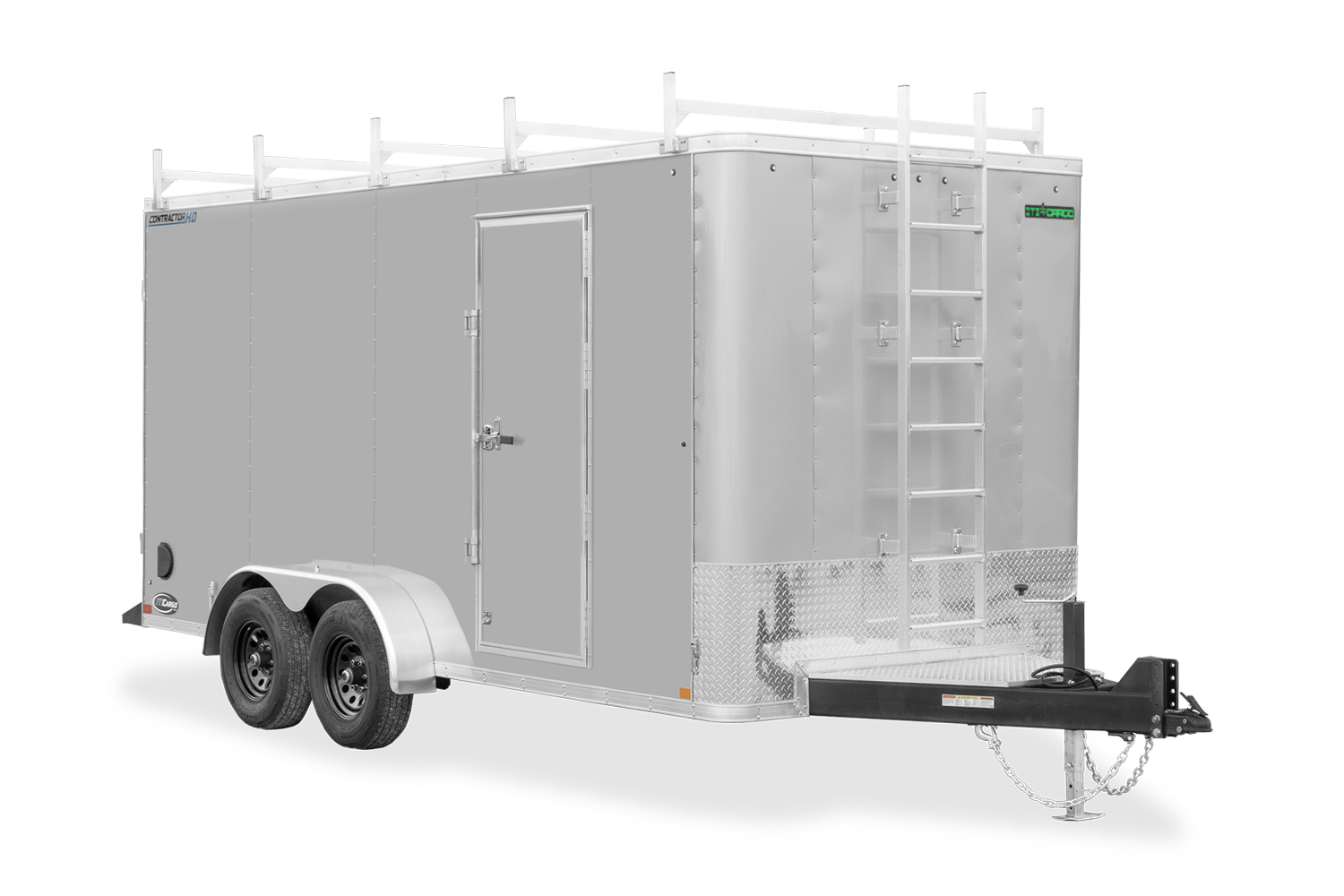

The last thing you should need to worry about when you’re headed to the job site is how you’ll get the tools there. That is why we offer the Contractor HD. With front access ladder and ladder racks, mounted E-Track and (4) 6000 lb. rated D-Rings, the Contractor HD is ready to be your mobile headquarters. We’ve designed this trailer to be perfect for those who are always on the move, moving from jobsite to jobsite. Let ITI Cargo have your back.
Features
- 12" On-Center C-Channel Floor Crossmembers
- 16" On-Center Tube Gusseted Wall Studs
- 12" On-Center Tube Roof Bows
- Walk-On Roof
- 12" Extended Tongue
- 2-5/16" Adjustable Coupler
- Safety Chains
- 7-Way RV Style Molded Plug
- Breakaway Switch with Battery
- 7k Setback Jack
- 32" x 70" RV Side Door w/ Bar Lock
- Aluminum Door Holders
- Torsion Axles
- Brakes on Both Axles
- 15" Radial Tires
- Black Wheels
- Bedliner Coated Tongue, Rear Hoop, and Fender Boxes
- Undercoated Lower Frame
- Polyethylene Vapor Barrier
- .030 Smooth Aluminum Exterior
- Semi-Screw-less (Seams Screwed w/ Color Matching Screws)
- Seamless Aluminum Roof
- Aluminum Bottom Trim
- 24" ATP Stoneguard w/ Top Trim
- Flow-Through Scoop Vents
- 6'6" Interior Height
- 3/8" Engineered Wood Wall Liner w/ Aluminum H-Molding
- 3/4" Engineered Wood Flooring
- (2) 12 Volt Wall-Mounted LED Dome Lights w/ 1 Wall Switch
- (4) 6000 lb. Rated D-Rings
- LED Slimline Lights and 3/4" Bullet Marker Lights (All Clear Lens)
- (1) 10' Strip of Surface Mounted E-Track on Passenger Side
- Front Access Ladder and Ladder Racks
Available Options
- Super-Duty Ramp Door
- Full Width Rear Step Bumper - Double Doors Models Only
- Engineered Wood Shelving
- Electrical Options
- Contact your local dealer for more options
Specifications
- 7' Wide (7k)
- 7' Wide (10k)
- 8.5' Wide (10k)
- 8.5' Wide (14k)
- Model #
- 7' Wide (7k) 14' - Y8414CHD-TA-070
16' - Y8416CHD-TA-070 - 7' Wide (10k) 14' - Y8414CHD-TA-100
16' - Y8416CHD-TA-100
18' - Y8418CHD-TA-100
20' - Y8420CHD-TA-100 - 8.5' Wide (10k) 16' - Y10216CHD-TA-100
18' - Y10218CHD-TA-100
20' - Y10220CHD-TA-100 - 8.5' Wide (14k) 18' - Y10218CHD-TA-140
20' - Y10220CHD-TA-140
22' - Y10222CHD-TA-140
24' - Y10224CHD-TA-140
- GVWR (lb. / Axle)
- 7' Wide (7k) 7000
- 7' Wide (10k) 9900
- 8.5' Wide (10k) 9900
- 8.5' Wide (14k) 14000
- GAWR (lb. / Axle)
- 7' Wide (7k) 3500
- 7' Wide (10k) 5200
- 8.5' Wide (10k) 5200
- 8.5' Wide (14k) 7000
- Curb Weight
- 7' Wide (7k) 14' - 2750
16' - 2900 - 7' Wide (10k) 14' - 2900
16' - 3050
18' - 3600
20' - 3450 - 8.5' Wide (10k) 16' - 3450
18' - 3600
20' - 3750
22' - 3900
24' - 4050 - 8.5' Wide (14k) 18' - 3750
20' - 4080
22' - 4430
24' - 4780
Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
